How many Euro pallets fit in a 40 ft Pallet Wide container?
Using LoadComposer's current 40' HC Pallet Wide reference, the planner finds 30 Euro pallet floor positions, 24 industrial pallet positions, or 22 North American pallet positions with rotation allowed, zero modeled clearance, and no stacking.
Pallet Wide equipment is modeled separately because usable width matters. This result belongs to LoadComposer's displayed reference, not every container sold under a Pallet Wide label. Confirm the actual unit, door, floor, access, clearances, weight, securing, and operating constraints.
40' Dry versus 40' HC Pallet Wide
| LoadComposer reference | Internal L × W × H | Door W × H | Euro / Industrial / North American |
|---|---|---|---|
| 40' Dry | 12,032 × 2,350 × 2,393 mm | 2,340 × 2,280 mm | 25 / 22 / 20 |
| 40' HC Pallet Wide | 12,095 × 2,444 × 2,692 mm | 2,400 × 2,584 mm | 30 / 24 / 22 |
The additional modeled width changes the orientation pattern that fits across the floor. It does not create a universal capacity claim: Pallet Wide dimensions and access can vary by owner, manufacturer, series, and condition.
Common pallet results
| Pallet preset | Footprint | Floor positions found |
|---|---|---|
| Euro pallet | 1200 × 800 mm | 30 |
| Industrial pallet | 1200 × 1000 mm | 24 |
| North American pallet | 1219 × 1016 mm | 22 |

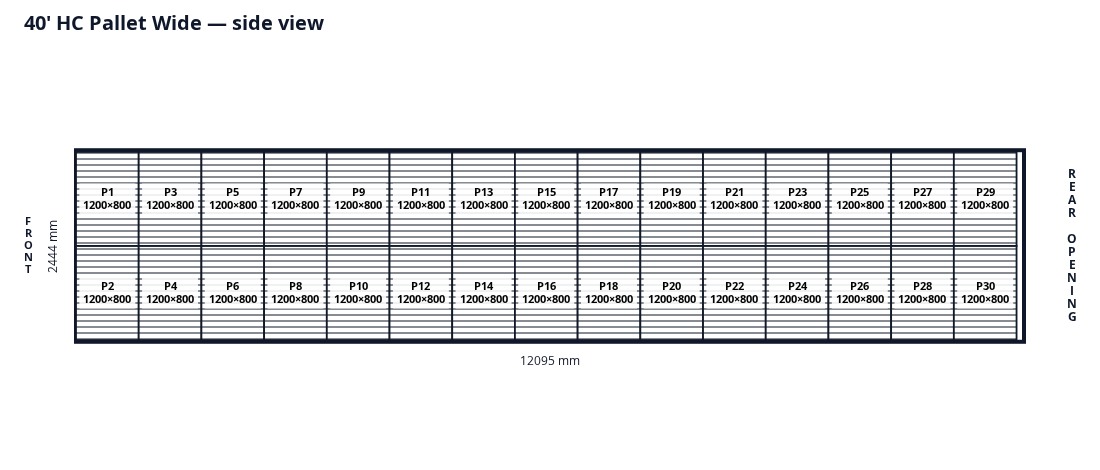

Pallet Wide floor-layout example
The image is the actual current-engine result for 30 Euro pallets at 1,500 mm loaded height. All 30 footprints are rotated in this result; they have not been redrawn for the guide.
